C10K SDUCR07

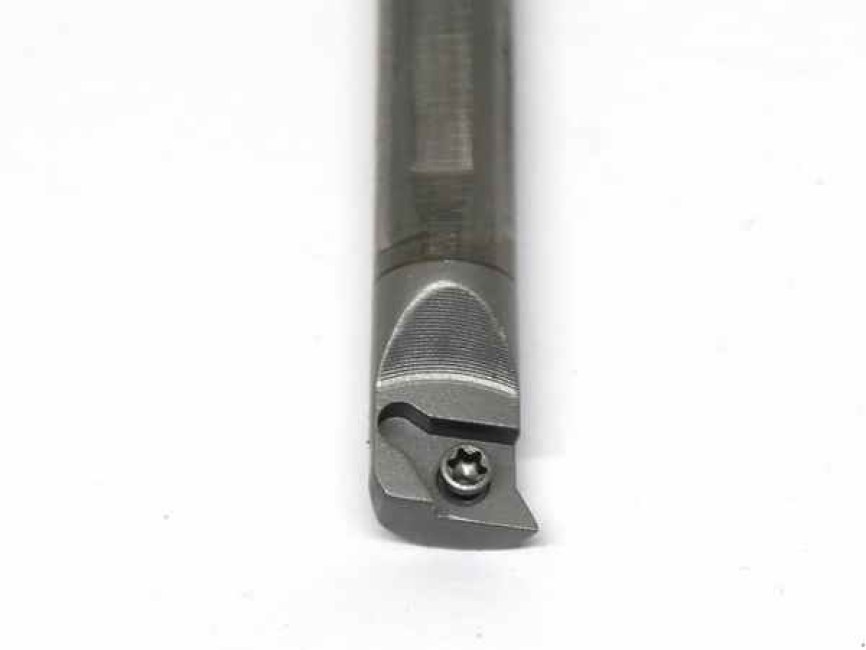

C10K SDUCR07 carbide holder for carbide turning inserts DC..0702 (DCMT, DCGT. . . )

C - Bar is made out of hardened carbide

10 - Diameter of bar is 10mm

K - Length of the holder 125mm

S - Method of mounting insert in to holder, with screw (M4) through insert, turning iserts have bore through.

D - Quadrilateral shape of turnining insert meant to be clamped into holder - rhombic (55°)

U - approach angle (93°) Angle under which the insert is attached to the holder (93°) relative to the workpiece axis

C - Tool is meant for Inserts with clearance angle (7°) under main cutting edge

R - Orientation of the turning tool is right

07 - The length of the cutting edge on the turning insert intended for clamping into this holder - 7,8mm

Minimum workpiece hole diameter - 15mm

• Material:

  • Carbide
• Colour:
  • gray with laser mark of tool code and depth mark

• Included:

  • Screw  M4

  • Key
• Packaging:
  • Colour plastic box
• Compatible with inserts DCMT 0702.., DCGT 0702..
