CKJNR 2525M16

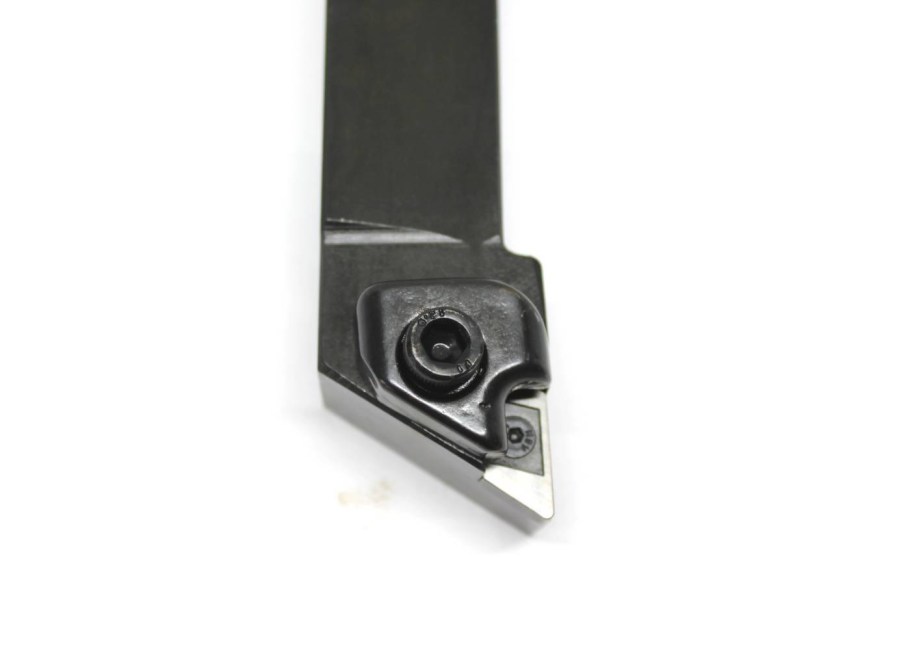

CKJNR 2525M16 standard turning holder for KNUX 1604..R11

C - Method of clamping insert in to holder, with a paw from above, without a bore through insert

K - parallelogram (55°) - quadrilateral shape of turnining insert meant to be clamped into holder

J - approach angle (93°) Angle under which the insert is attached to the holder (93°) relative to the workpiece axis

N - Tool is meant for Inserts with clearance angle (0°) under main cutting edge

R - Orientation of the turning tool is right

25 - Height of tool holder

25 - Width of tool holder

M - Length of the holder 150mm

16 -The length of the cutting edge on the turning insert intended for clamping into this holder 19,7mm

• Material:
  • Hardened steel

  • Black oxide coating
• Colour:
  • black with laser mark of tool code
• Included:

  • Clamp
  • Screw
  • Spring
  • Shim/pad
  • Key
• Packaging:
  • Colour plastic box
• Compatible with KNUX 1604.. R11
