S16Q SVUCR11

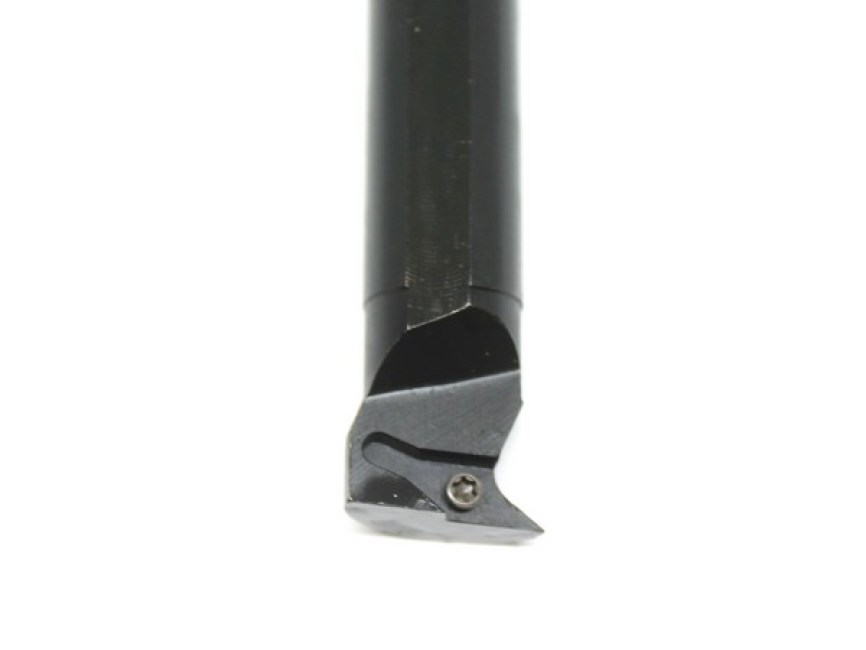

S16Q SVUCR11 standard holder for carbide turning inserts VC..1103 (VCMT, VCGT. . . )

S - Bar is made out of hardened steel

16 - Diameter of bar is 16mm

Q - Length of the holder 180mm

S - Method of mounting insert in to holder, with screw (M2.5) through insert, turning iserts have bore through.

V - Quadrilateral shape of turnining insert meant to be clamped into holder - rhombic (35°)

U - approach angle (93°) Angle under which the insert is attached to the holder (93°) relative to the workpiece axis

C - Tool is meant for Inserts with clearance angle (7°) under main cutting edge

R - Orientation of the turning tool is right

11 - The length of the cutting edge on the turning insert intended for clamping into this holder 11,2mm

Minimum workpiece hole diameter - 22mm

• Material:
  • Hardened steel

  • Black oxide coating
• Colour:
  • black with laser mark of tool code and depth mark

• Included:

  • Screw  M2.5

  • Key
• Packaging:
  • Colour plastic box
• Compatible with inserts VCMT 1103.., VCGT 1103..
