SCLCR 2525 M09

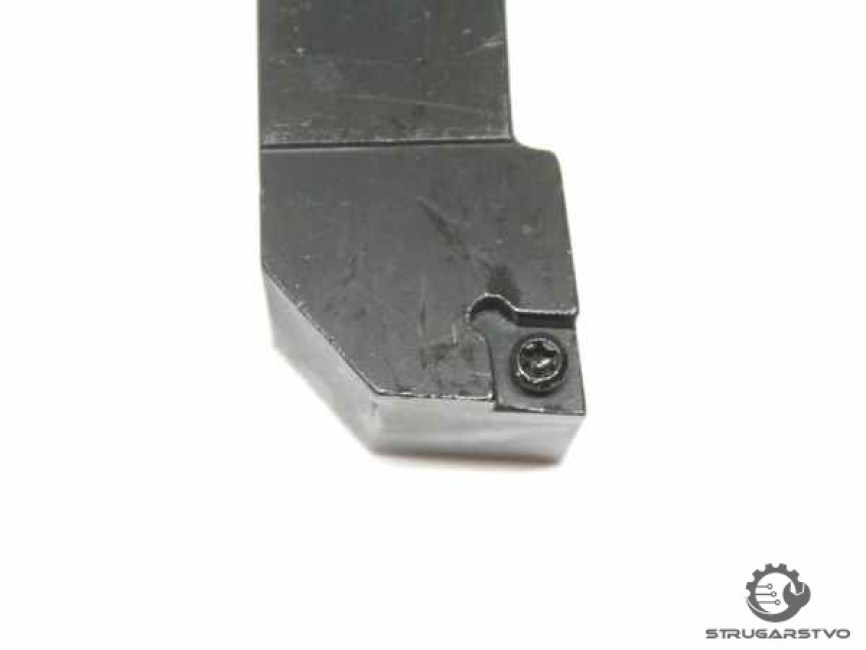

SCLCR 2525M09 standard turning holder for inserts CC..09T3

S - Method of clamping insert in to holder, with screw through insert, turning iserts have bore through.

C -Quadrilateral shape of turnining insert meant to be clamped into holder - rhombic (80°)

L - approach angle (95°) Angle under which the insert is attached to the holder (95°) relative to the workpiece axis

C - Tool is meant for Inserts with clearance angle (7°) under main cutting edge

R - Orientation of the turning tool is right

25 - Height of tool holder for turning inserts

25 - Width of tool holder for turning inserts

M - Length of the holder 150mm

09 - The length of the cutting edge on the turning insert intended for clamping into this holder 9,7mm

• Material:
  • Hardened steel

  • Black oxide coating
• Colour:
  • black with laser mark of tool code
• Included:

  • Screw
  • Key
• Packaging:
  • Colour plastic box
• Compatible with CC.. 09T3..
