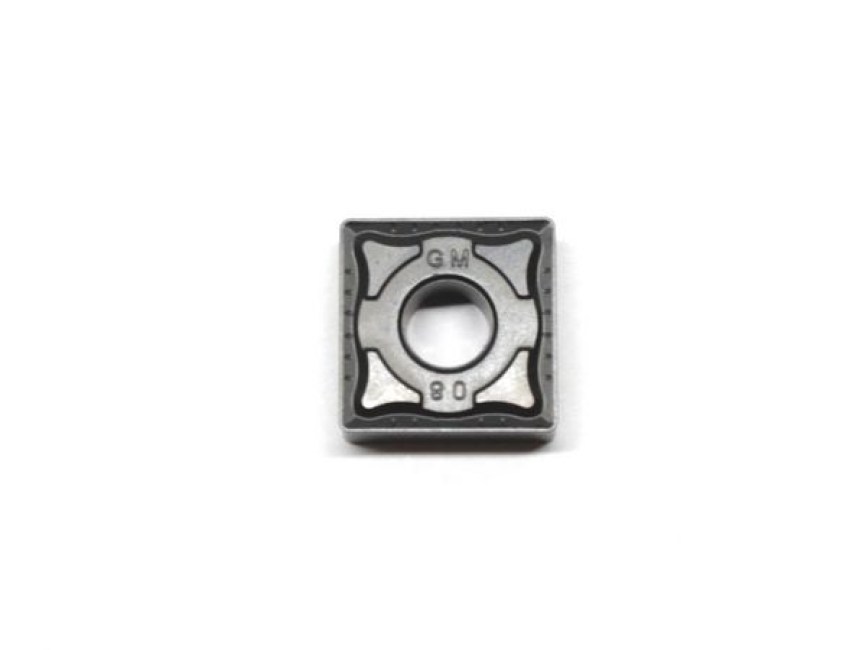

Noble stružne ploščice SNMG 150608 JT4125

SNMG 150608 is a usable turning indexable insert with its geometry and rigid mounting in the turning holder allows the possibility of turning different shapes and surfaces.

With its design and shape, this insert is great in many lathe workshops.

Due to the strength and durability of the carbide, various steel alloys can be machined with this SNMG 150608 indaxeble insert.

You will be satisfied to use this carbide tool, as it has proven to be a grateful helper in many turning processes.

The tungsten carbide on this SNMG 150608 provides high temperature resistance, and at the same time the surface coating allows the material to be drained from the work process.

The geometry of this insert is made in such a way that it causes smooth and rigid turning during the turning process and well separates the chips from the mechanical process.

Zero free angle under the main cutting edge, provides excellent support to the cutting edge and thus prolongs the resistance of the tool to various influences.

Behind this product are many successes that guarantee the above-highstandard quality of these snmg 15608.

You are welcome to buy with a guarantee of satisfaction.

SNMG 120408 standard square carbide (with coating) turning inserts with eight cutting edges

S - quadrilateral shape of turnining insert - square

N - Insert without clearance under main cutting edge (0°)

M -Tolerances and dimensions of carbide turning insert

G - Hole through insert and duble sided chipbreaker

15 - Length of cutting edge 15,9mm

06 - Height (thickness) of insert 6.35mm (from bottom of the insert to the top of the cutting edge)

08 - Nose radius R0.8

QG7205G - ISO Grade P20  The type of carbide grade and the coating on inserts is originally intended for turning steel and steel alloys but it also performs when turning other alloys.

• Material: ISO grade carbide (tungsten):
  • For steel P20 (between wear resistance and shock resistance)(See ISO grade tables.)

  • PVD coating - thinner more precise layer coating
• Feed speed in mm/rev - 0.1-0.3
• Cut depth - 0.5mm - 4.0mm
• Cuting speed - 160 - 300m/min
• Turning insert feature:
  • Strong cutting edges reliability and long endurance.
  • Recommended for different purposes and applications.
