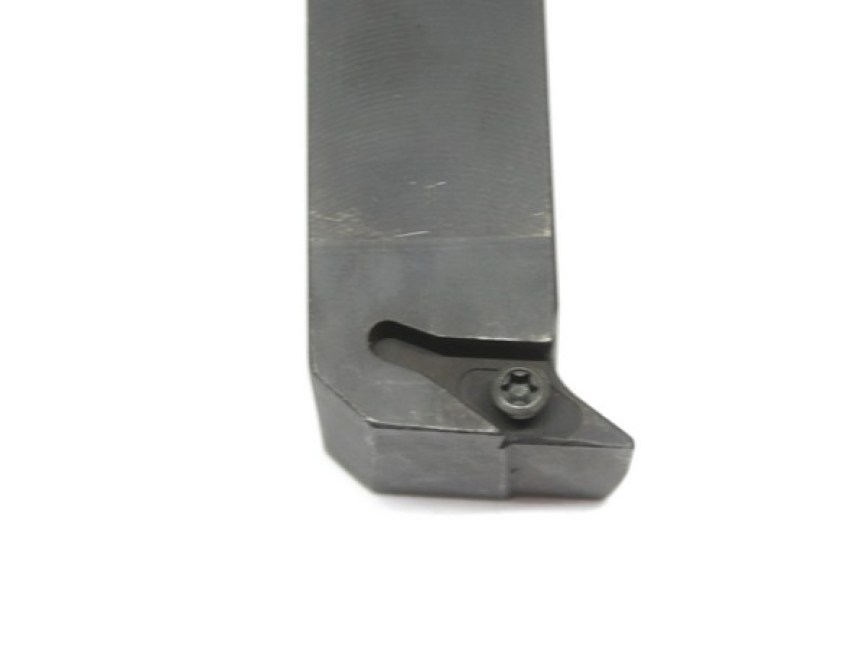

SVUCR 2525M16 turning toolholder

SVJCR 2525M16 standard holder for turning inserts VC.. 1604

S - Method of clamping insert in to holder, with screw through insert, turning iserts have bore through.

V - Quadrilateral shape of turnining insert meant to be clamped into holder - rhombic (35°)

U - approach angle (93°) Angle under which the insert is attached to the holder (93°) relative to the workpiece axis

C - Tool is meant for Inserts with clearance angle (7°) under main cutting edge

R - Orientation of the turning tool is right

25 - Height of tool holder for turning inserts

25 - Width of tool holder for turning inserts

M - Length of the holder 150mm

16 -The length of the cutting edge on the turning insert intended for clamping into this holder 16,6mm

• Material:
  • Hardened steel

  • Black oxside coating
• Colour:
  • metall gray with laser mark of tool code
• Included:

  • Screw
  • Key
• Packaging:
  • Colour plastic box
• Compatible with inserts VC.. 1604..
