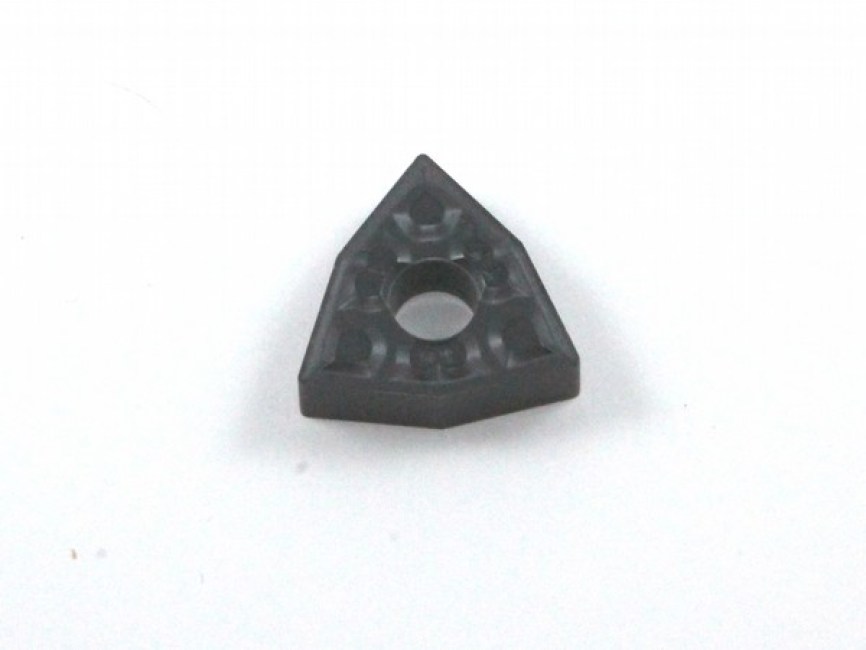

Iscar stružne ploščice WNMG 080408 IC907

WNMG080404 TF standard carbide (with coating) turning inserts with six cutting edge

W - Hexagon (trigon) (80°) shape of turning insert

N - Insert without free angle (0°) under the main cutting edge

M - Tolerances and dimensions of turning inserts

G - Hole through insert and double sided chipbreaker

08 - Length of cutting edge 8,7mm

04 - Height (thickness) of insert 4.76mm (from bottom of the insert to the top of the cutting edge)

08 - Nose radius R0.8

IC 907 - ISO Grade (P10-P30) (M05-M20) (K15-K30) - The type of carbide grade and the coating on inserts is originally intended for turning stainless steel but it also performs when turning other alloys.

• Material: ISO grade carbide (tungsten):
  • For stainless steel M05-M20 (better against wear resistance)(See ISO grade tables.)

  • For steel P10-P30 (between wear resistance and shock resistance)(See ISO grade tables.)
  • PVD coating - thinner more precise layer coating
• Feed speed in mm/rev - 0.12-0.35
• Cut depth - 1.mm - 4.0mm
• Cuting speed - 140 - 240m/min
• Turning insert feature:
  • Strong cutting edges reliability in hard cuting conditions and endurance.
  • Geometry of WNMG turning insert is shaped for strong turning.

  • Six cutting edges (when used properly, you can use it six times)
  • Inserts have strongly supported cutting edge.
  • Recommended for different purposes and applications, especially in case when you need to change cutting edge often.

• Tips and Tricks:

  • For rough turning it is recommended  to use inserts with bigger nose radius (like R0.8 - R1.2), so wear, force and heat is distributed over larger surface - which makes inserts more durable.

  • For finishing it is recommended to use inserts with smaller nose radius (like R0.8 - R0.4), with that we reduce preasure on insert, increase cutting abilities, reduce vibration and we make better finishing surfaces.
