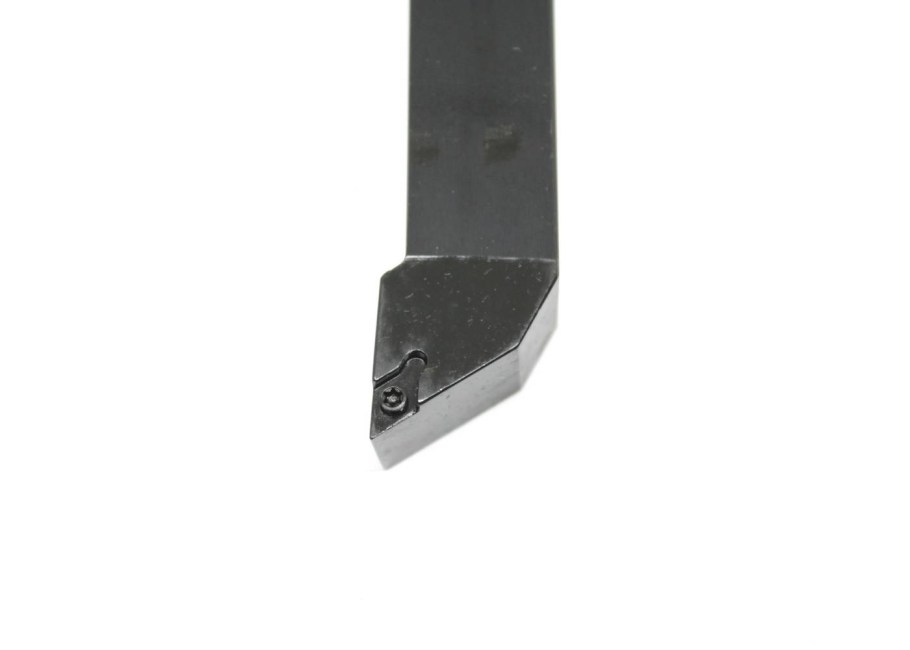

SDJCL 2020 K07

SDJCL 2020 K07 standardno držalo za stružne ploščice DC.. 0702

S - Method of clamping insert in to holder, with screw through insert, turning iserts have bore through.

D - Quadrilateral shape of turnining insert meant to be clamped into holder - rhombic (55°)

J - approach angle (93°) Angle under which the insert is attached to the holder (93°) relative to the workpiece axis

C - Tool is meant for Inserts with clearance angle (7°) under main cutting edge

L - Orientation of the turning tool is left

20 - Height of tool holder for turning inserts

20 - Width of tool holder for turning inserts

K - Length of the holder 125mm

07 -The length of the cutting edge on the turning insert intended for clamping into this holder 7,8mm

• Material:
  • Hardened steel

• Colour:
  • metall gray with laser mark of tool code
• Included:

  • Screw
  • Key
• Packaging:
  • Colour plastic box
• Compatible with inserts DC.. 0702..
