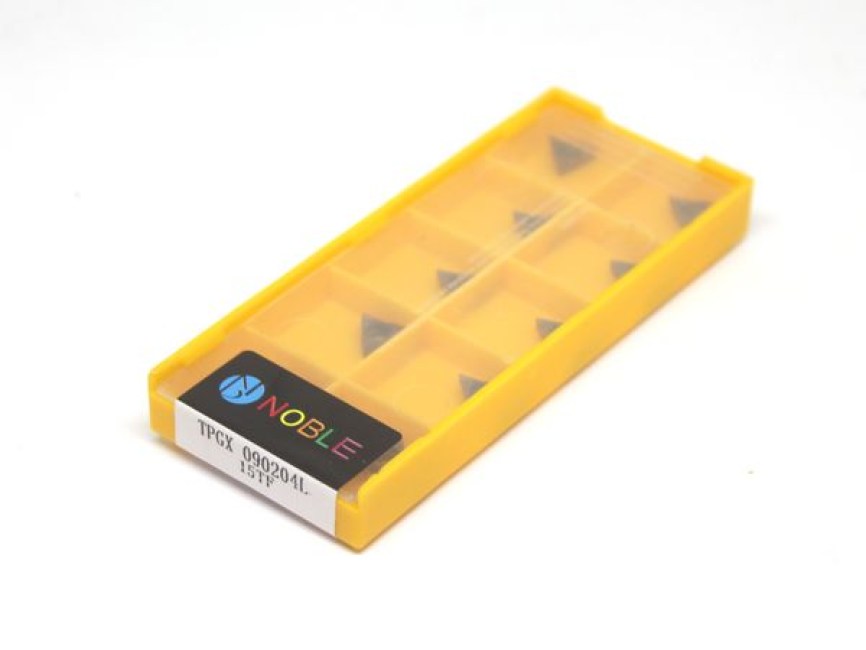

Noble stružne ploščice TPGX 090204L 15TF

TPGX 090204 L standard carbide turning inserts with three cutting edges

T - triangular shape of turnining insert

P - Insert with clearance under main cutting edge (11°)

G - Tolerances and dimensions of carbide turning insert

X - Hole through insert and single sided chipbreaker

09 - Length of cutting edge 9mm

02 - Height (thickness) of insert 2.38mm (from bottom of the insert to the top of the cutting edge)

04 - Nose radius R0.4

L - Orientation of insert is Left

15TF - ISO Grade P20 - The type of carbide grade and the coating on inserts is originally intended for turning steel, but it also performs when turning other alloys.

• Material: ISO grade carbide (tungsten):
  • For steel P20 (between wear resistance and shock resistance)(See ISO grade tables.)

  • CVD coating - thicker rough layer coating
