Sanstone stružne ploščice DNMG 150604 QG7215

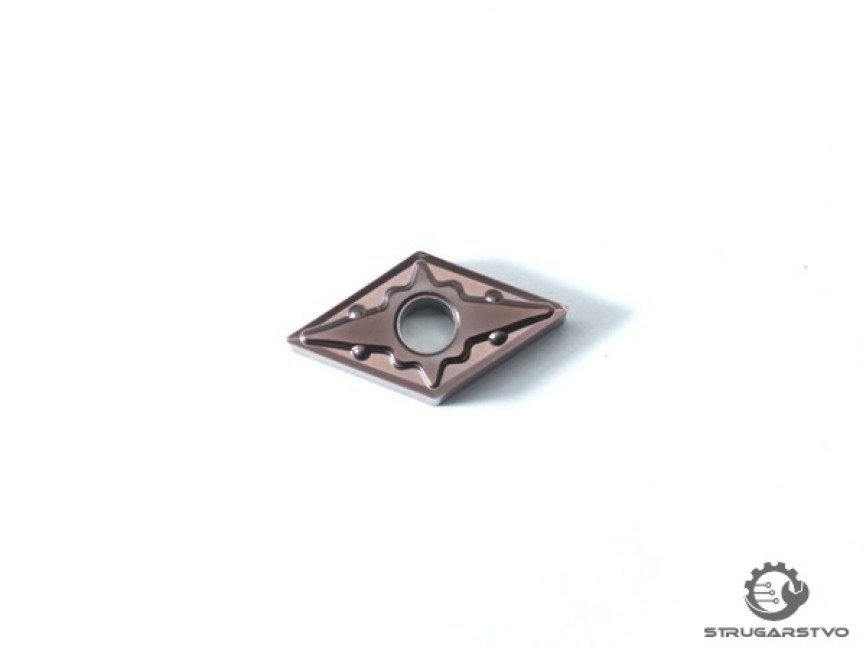

DNMG150604 standard carbide (with coating) turning inserts with four cutting edges

D - Quadrilateral shape of turnining insert - rhombic (55°)

N - Insert without clearance under main cutting edge (0°)

M - Tolerances and dimensions of carbide turning insert

G - Hole through insert and double sided chipbreaker

15 - Length of cutting edge 15,5mm

06 - Height (thickness) of insert 6.35mm (from bottom of the insert to the top of the cutting edge)

04 - Nose radius R0.4

 QG7215 - ISO Grade M20  The type of carbide grade and the coating on inserts is originally intended for turning stainless steel , steel alloys but it also performs when turning other alloys.

• Material: ISO grade carbide (tungsten):
  • For stainless steel M 20 (between wear resistance and shock resistance)(See ISO grade tables.)

  • PVD coating - thiner precise layer coating
• Feed speed in mm/rev - 0.15-0.3
• Cut depth - 0.5mm - 4.0mm
• Cuting speed - 140 - 220m/min
• Turning insert feature:
  • Strong cutting edges best reliability

  • Geometry of DNMG turning insert is shaped so, that many times this inserts are used in cases that other inserts like DCGT are to weak for the job.
  • Four cutting edges (when used properly, you can use it four times)
  • Recommended for all purposes and applications special in roughing
