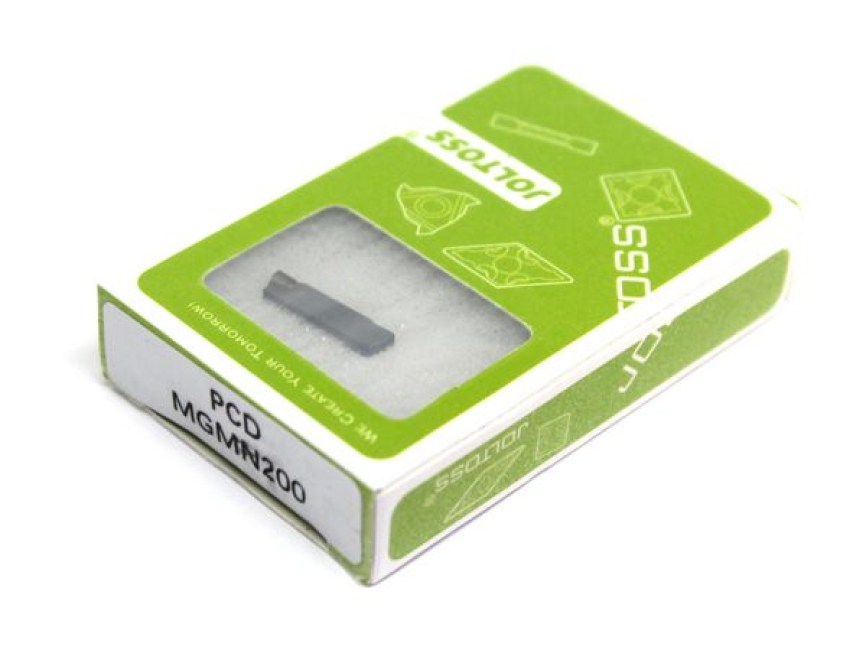

Zarezovalna stružna ploščica MGMN 200 PCD

MGMN200 PCD carbide turning inserts with PCD cutting edge

M - quadrilateral shape of turnining insert

G - Cutting edge shape - straight

M - Tolerances and dimensions of carbide turning insert

N - Withouth hole through insert

200 - Width of cutt - 2mm

Height of insert 3.65mm (from bottom of the insert to the top of the cutting edge)

Height Overall 3.9mm

Length of the insert 16mm

Nose radius R0.2

PCD - Cutting edge is polycrystall diamond originally intended for turning aluminum, non ferrous (aluminum alloy, copper, wood, glass fiber, carbon fiber reinforced plastic and other nonferrous metals and alloys)

• Material:

  • Carbide insert with polycrystall diamond attached on cutting edge tip
• Turning insert feature:
  • Strong cutting edges reliability and long endurance.
  • Recommended for high speed turning.
